AED Trener 3 Tekniske Spesifikasjoner
Nedenfor vil du finne de viktigste tekniske spesifikasjonene (foreløpig kun engelsk) for AED trener 3. De samme spesifikasjonen finnes også i bruksanvisningen.
Physical
- Weight: 600g (1.3lbs)
- Size (HxWxD): 218 mm x 133 mm x 57 mm (8.6” x 5.2” x 2.2” )
- Ruggedness:
- 10cm drop without operation interruption
- 1 meter drop test retaining full functionality
- No IP classification
Operation
Operating System:

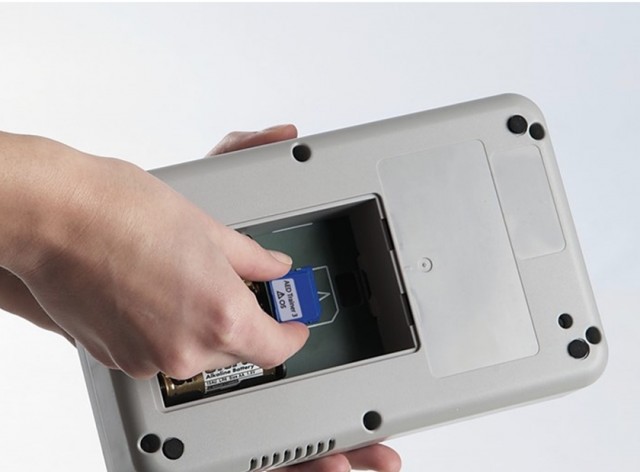

- OnData Card - 1 GB SD.

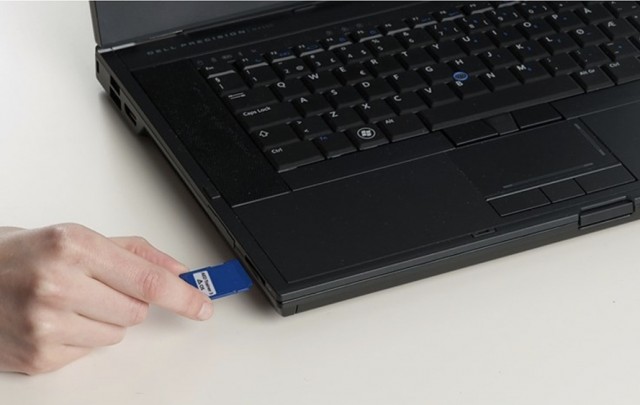

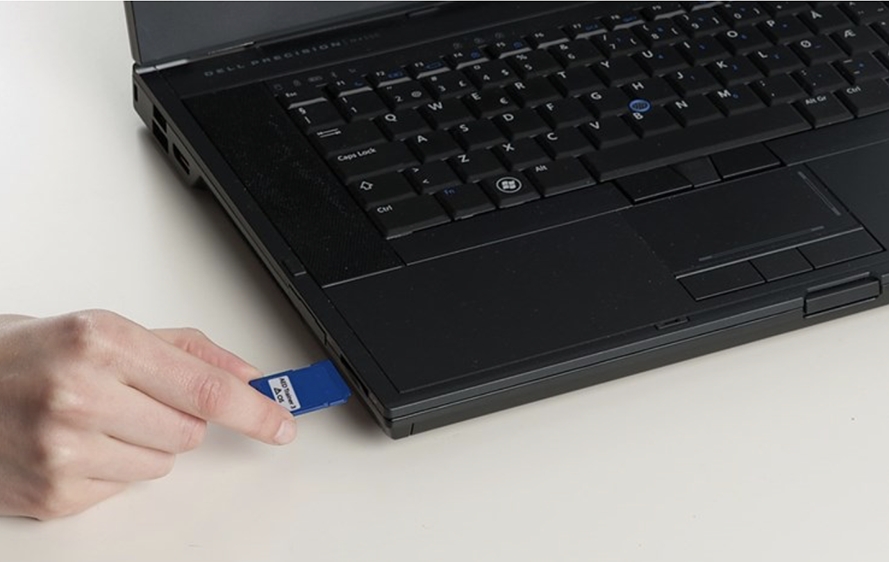

- Data card also contains configuration software (multi language) required to change device parameters.
- Localisation and software updates available from Laerdal download site.
Battery
- Type: 4 x AA Alkaline (any brand)
- Capacity: >10 hours
Materials
- Materials Prop 65 compliant
- Housing: Acrylonitrile butadiene styrene (ABS)
- Control buttons: Silicone
- Foot: Polyurethane (PU)
- Infant/Child key: Polycarbonate and polybutylene terephthalate (PC + PBT)
- Tether: Silicone
EMC Classification
The product is in compliance with the essential requirements of Directive 2004/108/EC on electromagnetic compatibility through compliance with:
- IEC 61000-6-3 Electromagnetic Compatibility (EMC) - Part 6-3:
- IEC 61000-6-1 Electromagnetic Compatibility (EMC) - Part 6-1:
(See DFU for additional electromagnetic conformity information)
Regulatory Approvals
CE mark, FCC Statement (US), CSA Certification (Canada), C Tick (N25270) (Australia)
Environmental Controls
- Storage temperature: 0º - 40º C (32º - 104º F)
- Operating temperature: 10º - 35º C (50º - 95º F)
- Relative humidity: 0 - 90% non-condensing
Remote Control
- Size: 96 mm x 54 mm x 6 mm (3.8” x 2.1” x 0.2”)
- Battery Type: Lithium CR2025 3V
Disposal
AED Trainer 3 contains electronic components which should be disposed of in accordance with local regulations.
